Arrma AR390069 / 5052127030151

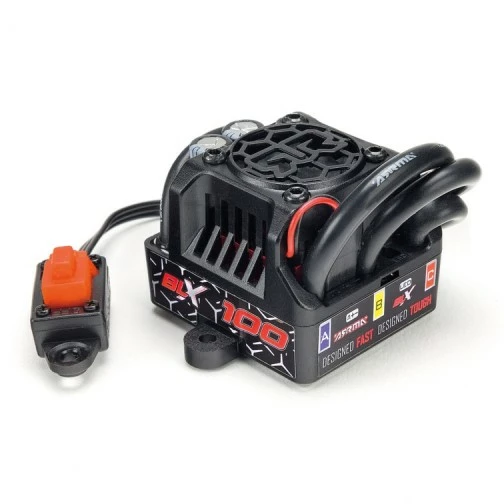

The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.
Ausstattungsdetails:
Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
SPECIFICATION
| Battery usage | 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH |
| Low Voltage Cut-Off (LVC) | 3.4V per cell |
| Thermal Protection Temperature | 125°C / 257°F |
| Over-Voltage Protection | Over 12.6V |
| BEC Voltage | 6V |
| BEC Current | 4A |
| ESC Length | 43mm / 1.69″ |
| ESC Height | 34mm / 1.34″ |
| ESC Width | 54.5mm / 2.15″ (Including hold-down tabs) |
| ESC Weight | 120g / 4.2oz |
| Receiver Wire Length | 170mm / 6.70″ |
| Battery Wire Length | 125mm / 4.92″ |
| Motor Wire Length (Including Connector) | 200mm / 7.87″ |
| Switch Length | 110mm / 4.33″ |
| Switch Width | 12.8mm / 0.5″ |
| Switch Height | 18mm / 0.71″ |
| Motor Bullet Connector Size | 4mm / 0.16″ |
| Wire Specifications | 12AWG |
| ESC Battery Connector Type | EC5 |
Enthält:
1 x BLX100 Brushless 3S ESC
Ersatzteil zu folgenden Arrma Modellen/Chassis:
Big Rock 3S
- AR102711 Big Rock 4×4 3S
- ARA102723 Big Rock BLX 4X4
- ARA4312V3 Big Rock BLX 4X4 3S
Granite
- ARA102720T1 Granite BLX 4X4
- ARA102720T2 Granite BLX 4X4
Granite 3S
- AR102666 Granite 4×4 3S BLX
- ARA4302V3T2 Granite BLX 4X4 3S Rot
Granite 4×4
- ARA4302V3T1 Granite BLX 4X4 3S Grün
Senton 3S
- AR102668 Senton 4×4 3S BLX
- ARA102721T1 Senton BLX 4X4 3S
- ARA102721T2 Senton BLX 4X4 3S
- ARA4303V3T1 Senton BLX 4X4 3S Schwarz/Blau
- ARA4303V3T2 Senton BLX 4X4 3S Schwarz/Rot
Typhon 3S
- AR102696 Typhon 4×4 3S BLX
- ARA102722 Typhon BLX 4X4 3S
- ARA4306V3 Typhon BLX 4X4 3S Rot
| Versandgewicht: | 0,21 kg |
